Hydraulikverschraubungen

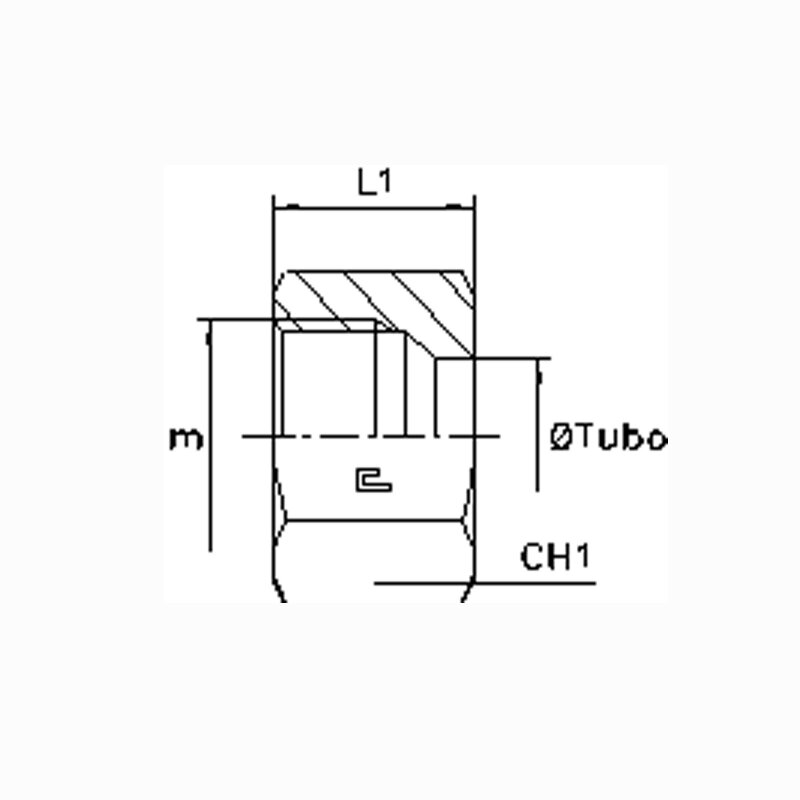

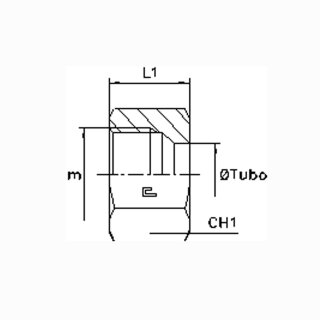

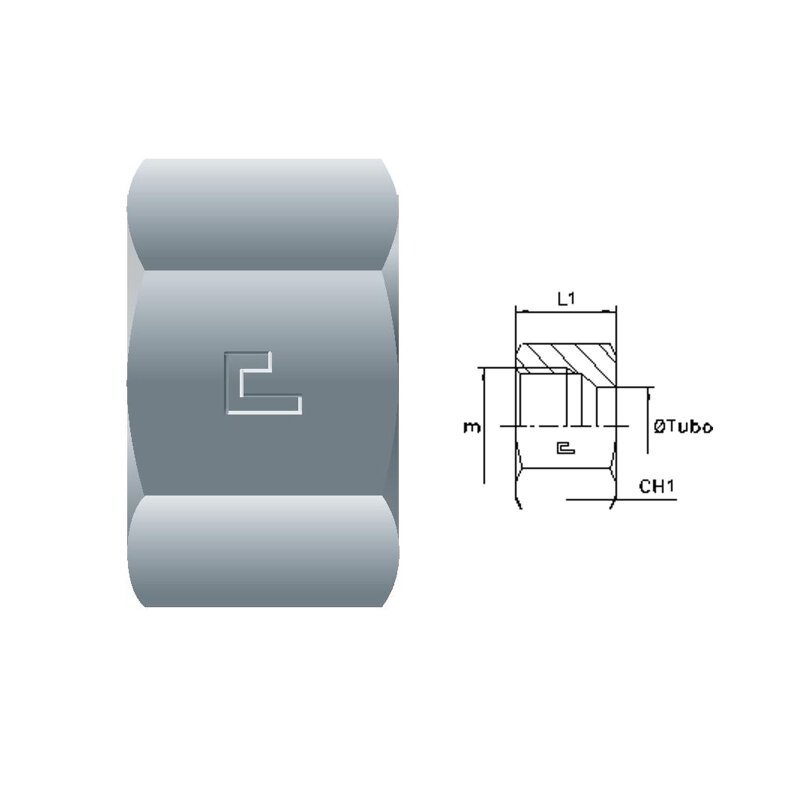

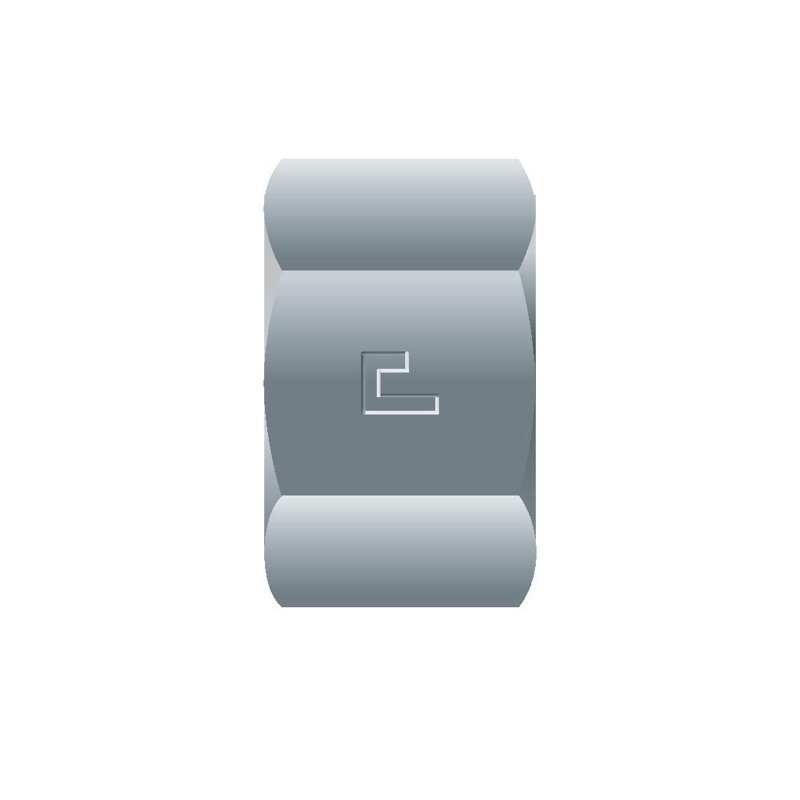

Überwurfmutter passend zu unseren Hydraulik Schneidringverschraubungen
Werkstoff: Stahl, verzinkt
Anwendung: Zum Verbinden von zwei Schlauchleitungen mit Schneidringverschraubungen.
Serie / Baureihe:
LL= sehr leicht
L = leicht
S = schwer

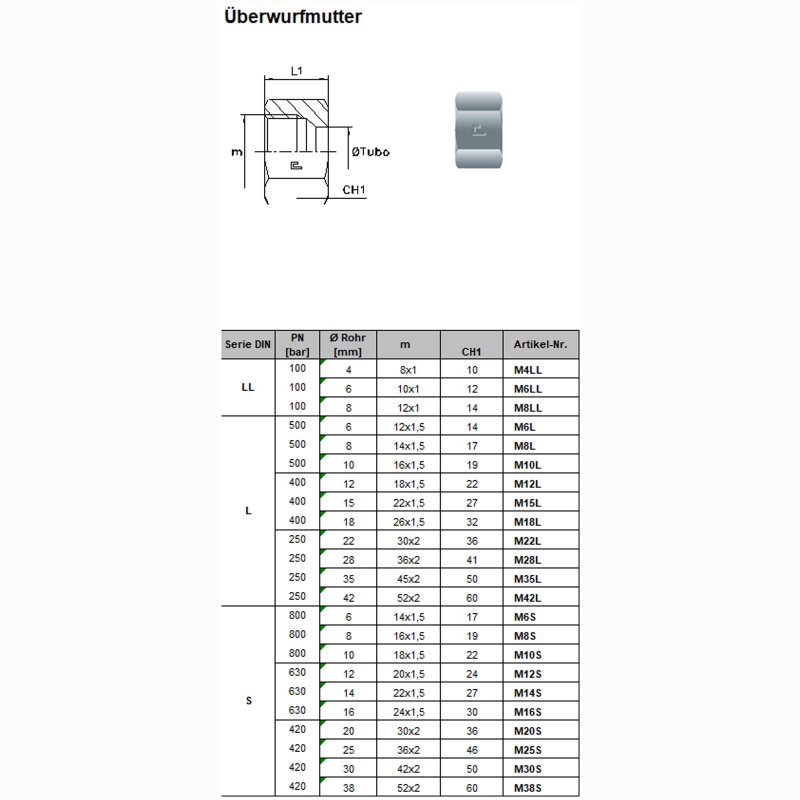

Serie DIN |
Artikel-Nr. |
PN [bar] |
Rohr [mm] |
Gewinde der Überwurfmutter M |
CH1
|
LL |
M4LL |
100 |
4 |
M 8 x1 |
10
|
LL
|
M6LL
|
100
|
6 |
M 10 x 1
|
12
|
LL
|
M8LL
|
100 |
8 |
M 12 x 1
|
14
|
L |
M6L
|
315
|
6 |
M 12 x 1,5
|
14
|
L |
M8L
|
315
|
8 |
M 14 x 1,5
|
17
|
L |
M10L
|
315
|
10 |
M 16 x 1,5
|
19
|
L |
M12L
|
315 |
12 |
M 18 x 1,5
|
22
|
L |
M15L
|
315
|
15 |
M 22 x 1,5
|
27
|
L |
M18L
|
315
|
18 |
M 26 x 1,5
|
32
|
L |
M22L
|
160
|
22 |
M 30 x 2
|
36
|
L |
M28L
|
160 |
28 |
M 36 x 2
|
41
|
L
|
M35L
|
160
|
35 |
M 45 x 2
|
50
|
L
|
M42L
|
160
|
42 |
M 52 x 2
|
60
|
S |
M6S
|
630
|
6 |
M 14 x 1,5
|
17
|
S |
M8S
|
630
|
8 |
M 16 x 1,5
|
19
|
S |
M10S
|
630
|
10 |
M 18 x 1,5
|
22
|
S |
M12S
|
630
|
12 |
M 20 x 1,5
|
24
|
S |
M14S
|
630
|
14 |
M 22 x 1,5
|
27
|
S |
M16S
|
400
|
16 |
M 24 x 1,5
|
30
|
S |
M20S
|
400 |
20 |
M 30 x 2
|
36
|
S
|
M25S
|
400
|
25
|
M 36 x 2
|
46
|
S
|
M30S
|
400
|
30
|
M 42 x 2
|
50
|
S
|
M38S
|
315
|
38
|
M 52 x2
|
60
|
Hersteller: | Erkaflex |
Kategorie: | Schneidring Rohrverschraubung |
Artikelnummer: | M4LL |
GTIN: | 4251768502084 |
Bauform: | Gerade Verschraubungen |
Anschlussart 1: | metrisch 24° |
Anschlussart 2: | metrisch 24° |
Verschraubungsart: | Rohrverschraubung Körper |
Baureihe / Serie: | Winkel |
Versandgewicht: | 0,10 kg |
Artikelgewicht: | 0,10 kg |
Inhalt: | 1,00 Stück |
